Introduction

The Gearlinx NR4416 platform is an enterprise edge compute and out-of-band management solution designed and optimized for deploying applications, virtual machines, and containers, while ensuring business continuity in high density, mission-critical data centers, colocations, and enterprise edge networks.

This manual documents administration of the device – the configuration, status, and commands – using the command line interface (CLI) and the web interface.

Explore the NR4416 configuration with the interactive web administration demo.

Hardware

  • 16 × RJ45 serial ports with software selectable pinout
  • 2 × 10/100/1000 Ethernet ports
  • 2 × 1GbE/10GbE SFP+ multi-rate ports
  • 8 × USB 2.0 ports
  • 64GB SSD storage
  • Dual AC power supplies with independent monitoring
  • Secure boot, TPM 2.0 physical security for remote provisioning

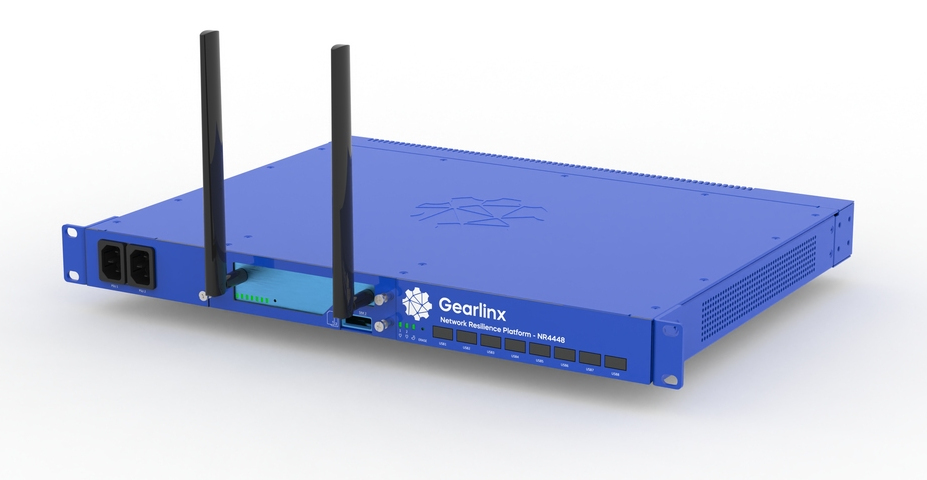

Product image
